Messer Cutting Systems offers CNC Plasma Cutting Machines & Oxyfuel Cutting Machines designed to make any job quick and easy to complete. Messer has been in business for more than 100 years and has established itself as a premier manufacturer of cutting machine technology. Messer’s technological milestones have become the industry standard – a “Benchmark“ – for cutting technology.
Titan III CNC Plasma Cutting Machines
The new Messer
Titan III is equipped with new linear ways in the Y Axis, as well as, a new rack and pinion design. The end cabinets are mounted within the wider end trucks for better protection against environmental factors such as: cutting and heat. It also provides a cleaner look to the machine. You will cut more precise, smooth holes thanks to the SureTrack pitch line rack and pinion drives. The wider end trucks provide even more stabilization along the X-Axis motion with maximum guide roller spread for the best quality edges when cutting. The new Titan III can be configured with high definition plasma torches, oxyfuel torches and even a fiber laser head.
Features and Benefits
- Cutting widths from 6′ to 16′ (1.82m to 8.768m)
- Machine motion accuracy +/- .010″ (2.54 mm) accuracy, .010″ (2.54 mm) repeatability (compensated machine motion in 72″ (1.82 m)
- Cut material form 26 ga. to 8″ (203.2 mm) thick plate
- Positioning speeds up to 1,700 ipm
- Global Control Plus Windows® based with easy to use operator interface
- Virtual ServiceTM remote consultation and diagnostics
- High productivity Smart Lifters
TMC4500DB CNC Plasma Cutting Machines
The TMC4500 Dual Beam is a heavy duty CNC plasma cutting machine built with state-of-the-art performance for a rigorous environment in fabrication shops and service centers. The dual box beam steel construction results in a stiff backbone to the gantry frame. Hardened and ground ways support even the heaviest cutting carriages and provide long life. X-Axis rails are machined from tough 115 lb./yd. crane rail to support and guide the cutting operation. The TMC4500 Dual comes with the Global Control, plus the most advanced CNC control system on the market.
Features and Benefits
- Cutting widths from 12 ft. to 28 ft.
- Cutting lengths up to 200 ft.
- Drilling up to 4″ diameter and tapping up to 1 1/2″ diameter
- Heavy duty, machined 115 lb. / yd. crane rail for X-Axis motion
- Welded steel end trucks with precision machined mating surfaces and with tolerances of .002″ maintained
- Dual massive gantry process beams provide superior bending, and torsional strength for any tool combination selected
- Precision Linear Y-Axis way system with wide spacing to provide rigid support of any process tool
- Global Control Plus, Windows® based with easy to use operator interface
- Virtual Service™ remote consultation and diagnostics
- Positioning speeds up to 1,400 ipm
- Machine motion accuracy ± 0.015″ in 72″ travel with .010″ repeatability measured with a laser interferometer
- Machine service power track in both X and Y Axis
- High speed Messer Cutting Systems programmable lifters (880 ipm Plasma, 150 ipm Oxyfuel)
- Designed and manufactured in the USA to machine tool and ISO 230-2 standards
- UL available

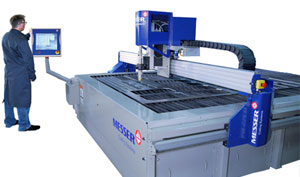

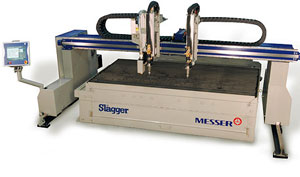

Messer EdgeMax CNC Plasma Cutting Machines
The EdgeMax cnc plasma cutting machines sport a rugged unitized steel table/frame, full capture bearing assemblies and a low mass aluminum beam driven by dual brushless AC motors, providing fast acceleration, precise motion and a very stable cutting platform.
Features and Benefits
- Powered by the Messer Global Control S with touch screen interface
- Uses a rugged unitized steel table/frame
- Tool Coverage: 6’x12′, 6’x24′, 8’x12′, 8’x24′, 10’x12′ and 10’x24′ (1.8m to 7.3m)
- Material Thickness Capacity: 26 ga. to 3″ (76mm) depending on process used
- Materials Processed: Steel, Stainless Steel and Aluminum
Messer PlateMaster CNC Plasma Cutting Machines
The PlateMaster offers a rugged steel, dual drive box beam gantry with heavy duty floor mounted rail system. Available in widths from 8’ to 12’ (2.5m to 3.657m), and lengths from 10’ to 80’ (3.048m to 24.384m), it travels at an industry leading rapid speed of 1000 IPM.
Cutting stainless steel, mild steel, and aluminum; the PlateMaster can cut gage up to 12”, (305mm) and can utilize plasmas up to 400 amps. The maintenance-free digital brush-less AC drives, provide smooth motion and accurate cut parts. Affordable, accurate and efficient; the PlateMaster provides high quality cutting solutions.
Features and Benefits
- Dual side drive Plasma and Oxyfuel cutting
- Travels at a rapid speed of 1000 IPM
- Available in widths from 8’ to 12’ (2.5m to 3.657m) and lengths from 10’ to 80’ (3m to 24m)
- Tool Coverage: Widths from 6′ to 12′ (1.82m to 3.657m) with full coverage of plate with first four torch stations. Standard length from 13′ to 80′ (4m to 24m) [conditionally expandable in 3′-4″ (1m) and 6′-8″ (2m) increments, based on selected options]
- Material Thickness Capacity: 26 ga. to 3″ (26mm) depending on Plasma used 1/8″ to 12″ (3mm to 305mm) with Oxyfuel
- Materials Processed: Steel, Stainless Steel and Aluminum
